Optical Splitters
Optical splitters are passive components used to split or combine optical
signals in fiber optic networks. PLC splitters and FBT couplers are widely used in
PON, FTTH, FTTx, telecommunications, and data-center applications. They are
available in a range of split ratios, fiber types, connector options, and package
formats to meet different network and installation requirements.

Mini Steel Tube Splitter (PLC)
Compact steel tube PLC splitter engineered for space-constrained network distribution such as splice closures and optical terminal boxes. Key Specs: • Split Ratios: 1x2, 1x4, 1x8, 1x16, 1x32 • Connectors: SC, LC, FC, ST (UPC/APC) • Fiber Types: G657A1, G652D • Cable Length: 0.75m – 2m | Diameter: 0.9mm, 2.0mm, 3.0mm • Wavelength Range: 1260nm – 1650nm • Features: Stainless Steel Housing, PLC Technology, Wavelength Independent

ABS Box Type Splitter
Modular enclosed PLC splitter providing sturdy protection for outdoor and indoor distribution frames. Key Specs: • Split Ratios: 1x2 through 1x32 • Housing: UV-resistant ABS modular enclosure • Mounting Options: Wall, pole, or rack mounting • Features: Modular Housing, UV-Resistant ABS, Multiple Mount Options

Cassette Tape Type Splitter
High-density LGX cassette splitter designed for seamless data center integration and rapid field servicing. Key Specs: • Format: Standard LGX cassette housing • Split Ratios: 1x2 to 1x32 (including custom 1x9 and 1x17) • Serviceability: Hot-swappable modular architecture • Features: LGX Cassette Format, Hot-Swappable Design, Data Center Standard

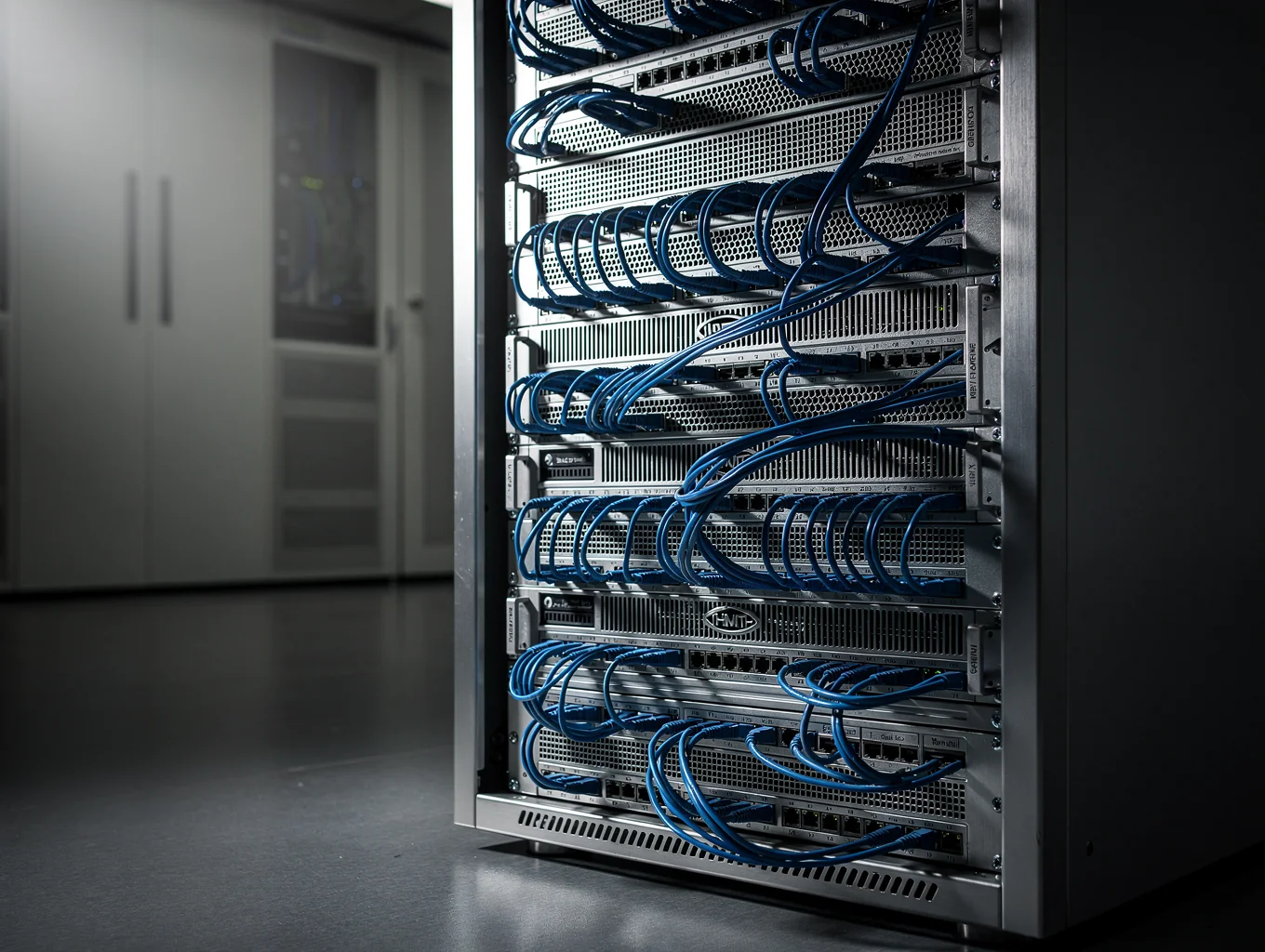

Rack Mount Splitter
Institutional 19-inch rack optical splitter panel designed for central office OLT frames and major telecom exchanges. Key Specs: • Form Factor: 19-inch rack mount (1U / 2U / 4U) • Split Ratios: 2x8, 2x16, 2x32 • Port Density: 8 to 48+ port configurations • Enclosure: Cold-rolled steel with integrated cable management • Features: 19 Inch Rack Mount, High Port Count, Professional Cable Management

FBT Splitter (Fused Biconical Taper)
Cost-effective fused biconical taper splitter built for lower channel counts and custom optical splitting ratios. Key Specs: • Technology: Fused Biconical Taper (FBT) • Split Ratios: 1x2 even and uneven splits (e.g., 30/70, 80/20) • Operating Wavelengths: 1310nm / 1550nm dual window • Features: Fused Biconical Taper, Custom Ratio Options, Cost-Effective Solution

Custom Ratio Splitter
Engineered optical splitting solutions designed for non-standard network designs and custom FTTH topographies. Key Specs: • Split Ratios: Non-standard ratios (1x9, 1x12, 1x17, and asymmetric options) • Engineering: Tailored connectors, custom cable lengths, and packaging • Features: Custom Engineering, Non-Standard Ratios, Specialized Solutions
Note on Options:
Specify splitter type, configuration and split ratio, operating wavelength, fiber type, connector type, fiber length, and package style. Available formats include bare fiber, mini steel tube, ABS box, cassette, LGX module, plug-in module, and rack-mount versions.
