Fiber Optic Pigtails
and Patch Cords
Fiber optic pigtails and patch cords provide terminated connections in fiber optic networks. Pigtails have a factory-terminated connector at one end and bare fiber
at the other for splicing. Patch cords have connectors at both ends for direct
connections between equipment, patch panels, adapters, and outlets.

Simplex Pigtail (Single Fiber)
This type is a single fiber cable with one connector on one end and a bare fiber on the other end for splicing. It is typically used in splice closures, termination boxes, and optical distribution frames to connect field cables to equipment or patch panels. The compact 0.9mm or 2.0mm diameter makes it easy to manage in tight spaces. Key options: • Connector type, such as SC, LC, FC, or ST, with UPC or APC polishing. • Fiber mode, such as single mode (9/125µm G652D or G657A) or multimode (OM1, OM2, OM3, OM4). • Cable diameter, such as 0.9mm tight buffer, 2.0mm, or 3.0mm. • Jacket material, such as PVC, LSZH (Low Smoke Zero Halogen), or OFNR. • Length, typically 0.5m, 1m, 1.5m, or 2m. • Color, yellow for single mode, aqua for OM3/OM4, or orange for OM1/OM2. • Connector polish, such as PC (Physical Contact), UPC (Ultra Physical Contact), or APC (Angled Physical Contact) for lower return loss.

Multi-Core Pigtail Bundle (Fan-Out Pigtail)

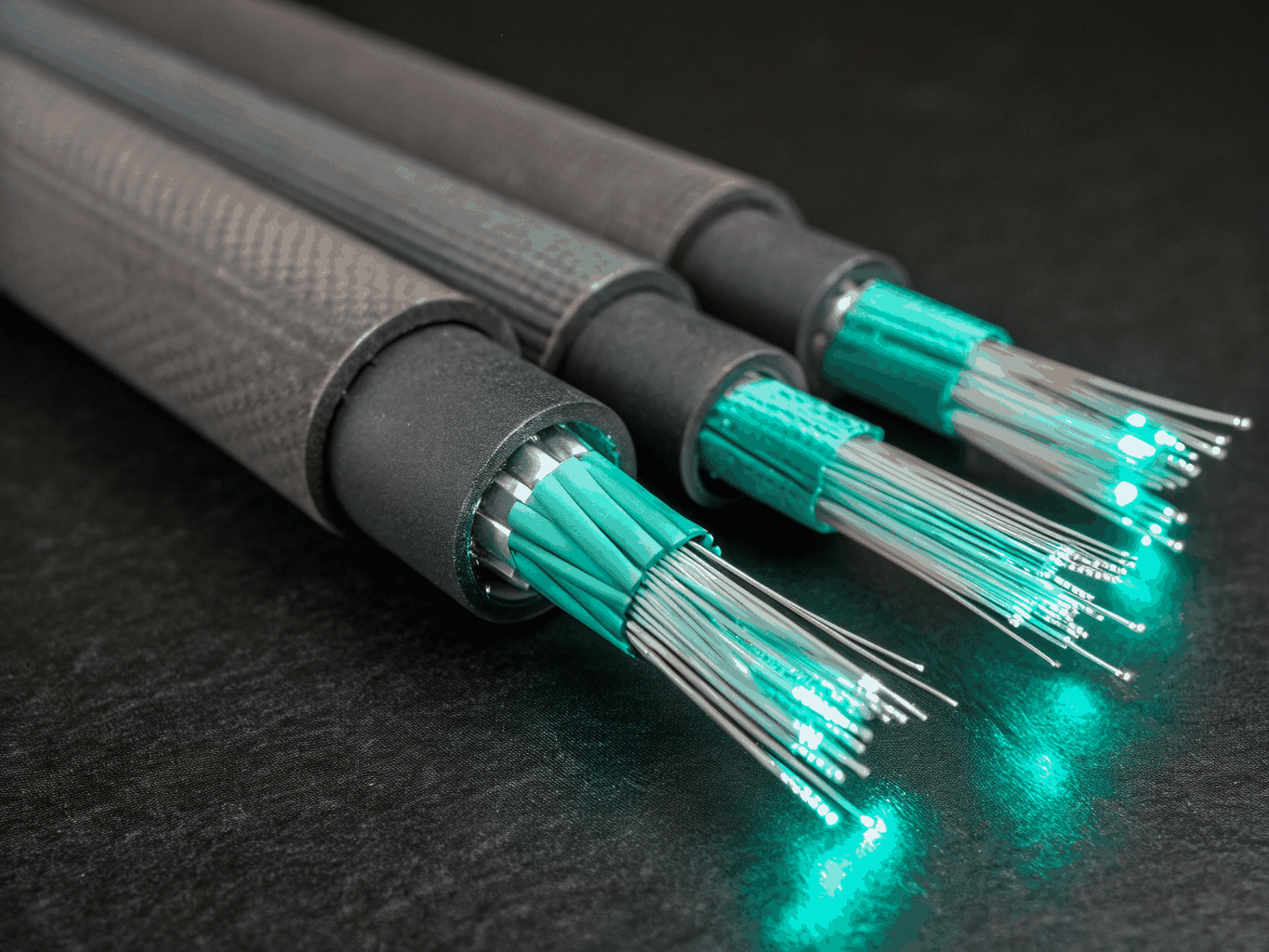

This type consists of multiple individual pigtails bundled together in a single cable, with each fiber terminated with its own connector. It is used for high-density splicing applications where multiple fibers need to be terminated simultaneously, such as in ribbon cable splicing or multi-core drop cables. Key options: • Core Count: 4, 6, 8, 12, 24, or 48 fibers. • Connector Types: SC, LC, FC, ST (UPC or APC polish). • Fiber type, such as single mode G652D or G657A. • Cable Structure: Ribbon fiber or bundle loose-tube structure. • Jacket Material: PVC, LSZH, or OFNR flame-retardant jacket. • Color coding, with each fiber in a different color for easy identification. • Length, typically 1m or 1.5m for splicing applications.

Simplex Patch Cord (Single Fiber Jumper)

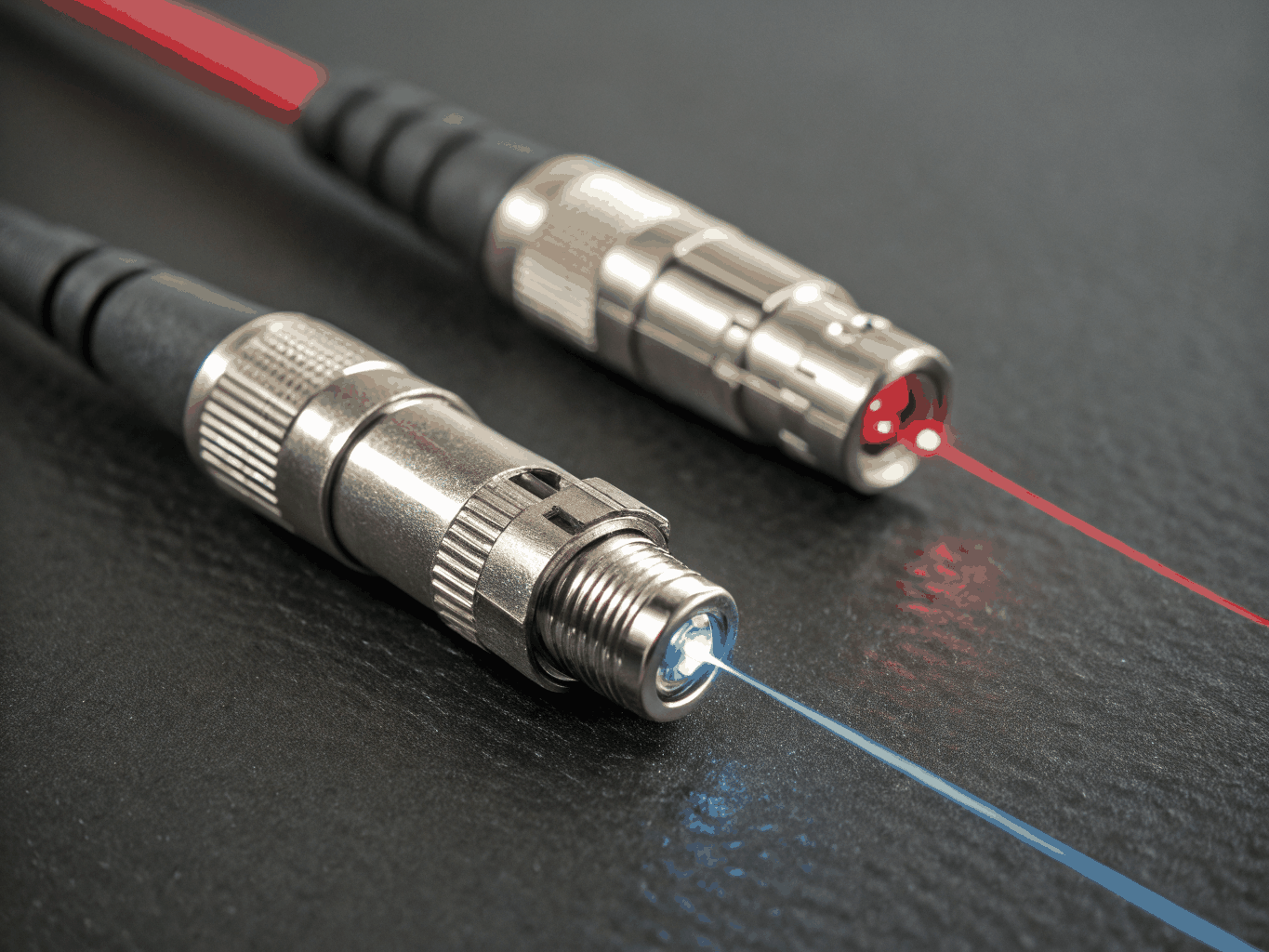

This type is a single fiber cable with connectors on both ends, used for point-to-point connections between devices, patch panels, or wall outlets. It is the most common type of patch cord for basic network connections in homes, offices, and data centers. Key options: • Connector type on each end, such as SC-SC, LC-LC, FC-FC, ST-ST, or hybrid (SC-LC, FC-SC, etc.), with UPC or APC polishing. • Fiber mode, such as single mode (9/125µm) or multimode (OM1, OM2, OM3, OM4, OM5). • Cable diameter, such as 2.0mm or 3.0mm. • Jacket material, such as PVC, LSZH, OFNR, or Plenum. • Length, customizable from 0.5m to 50m or longer. • Color, yellow for single mode, aqua for OM3/OM4, violet for OM4, lime for OM5, or orange for OM1/OM2. • Connector polish, such as PC, UPC, or APC.

Duplex Patch Cord (Two-Fiber Jumper)
This type consists of two fibers joined together with a zip-cord or dual-jacket design, with connectors on both ends for each fiber. It is used for duplex (bidirectional) connections where signals travel in both directions, commonly used in network equipment such as switches, routers, and SFPs. Key options: • Core count, typically 2 fibers (duplex). • Connector type, such as SC duplex, LC duplex, FC duplex, or hybrid, with UPC or APC polishing. • Fiber mode, such as single mode or multimode (OM1-OM5). • Cable diameter, such as 2.0mm x 2 or 3.0mm x 2 zip-cord. • Jacket material, such as PVC, LSZH, OFNR, or Plenum. • Length, customizable from 0.5m to 50m or longer. • Color, yellow for single mode, aqua for OM3/OM4, or orange for OM1/OM2. • Polarity, such as A-to-B or A-to-A configurations.

Multimode Patch Cord (OM1-OM5)

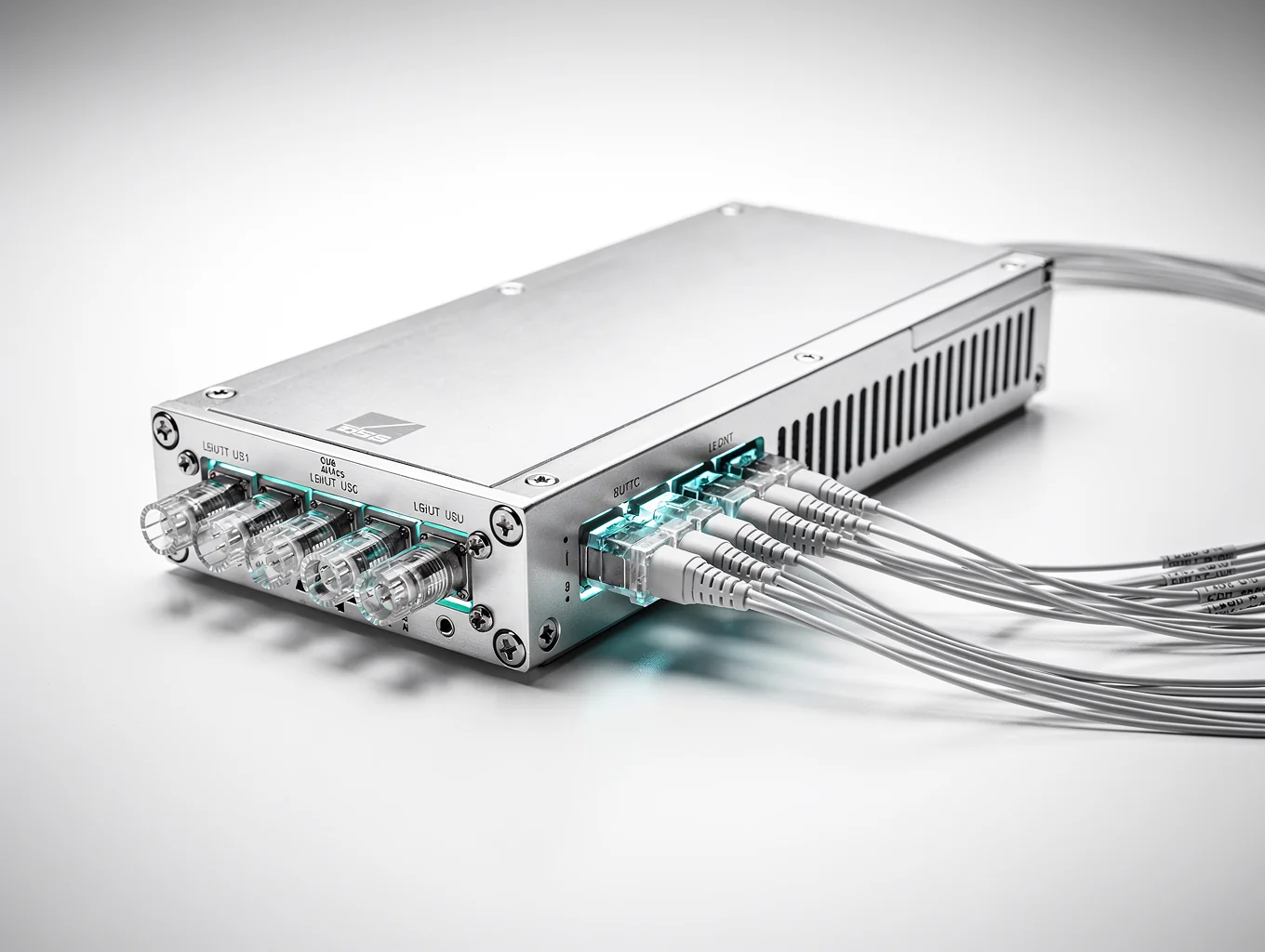

This type is specifically designed for short-distance, high-bandwidth applications such as data center interconnects, local area networks, and video transmission. Multimode fibers have larger core diameters (50/125µm or 62.5/125µm) and support multiple light modes, making them suitable for high-speed Ethernet and fiber channel applications. Key options: • Core count, such as simplex or duplex. • Connector type, such as LC, SC, ST, or MPO, with UPC or PC polishing. • Fiber grade, such as OM1 (62.5/125µm), OM2 (50/125µm), OM3 (50/125µm, laser optimized), OM4 (50/125µm, extended reach), or OM5 (50/125µm, wideband). • Cable diameter, such as 2.0mm or 3.0mm. • Jacket material, such as PVC, LSZH, or Plenum. • Color, orange for OM1/OM2, aqua for OM3/OM4, violet for OM4, and lime green for OM5. • Length, customizable from 0.5m to 50m or longer.

Special Application Patch Cord

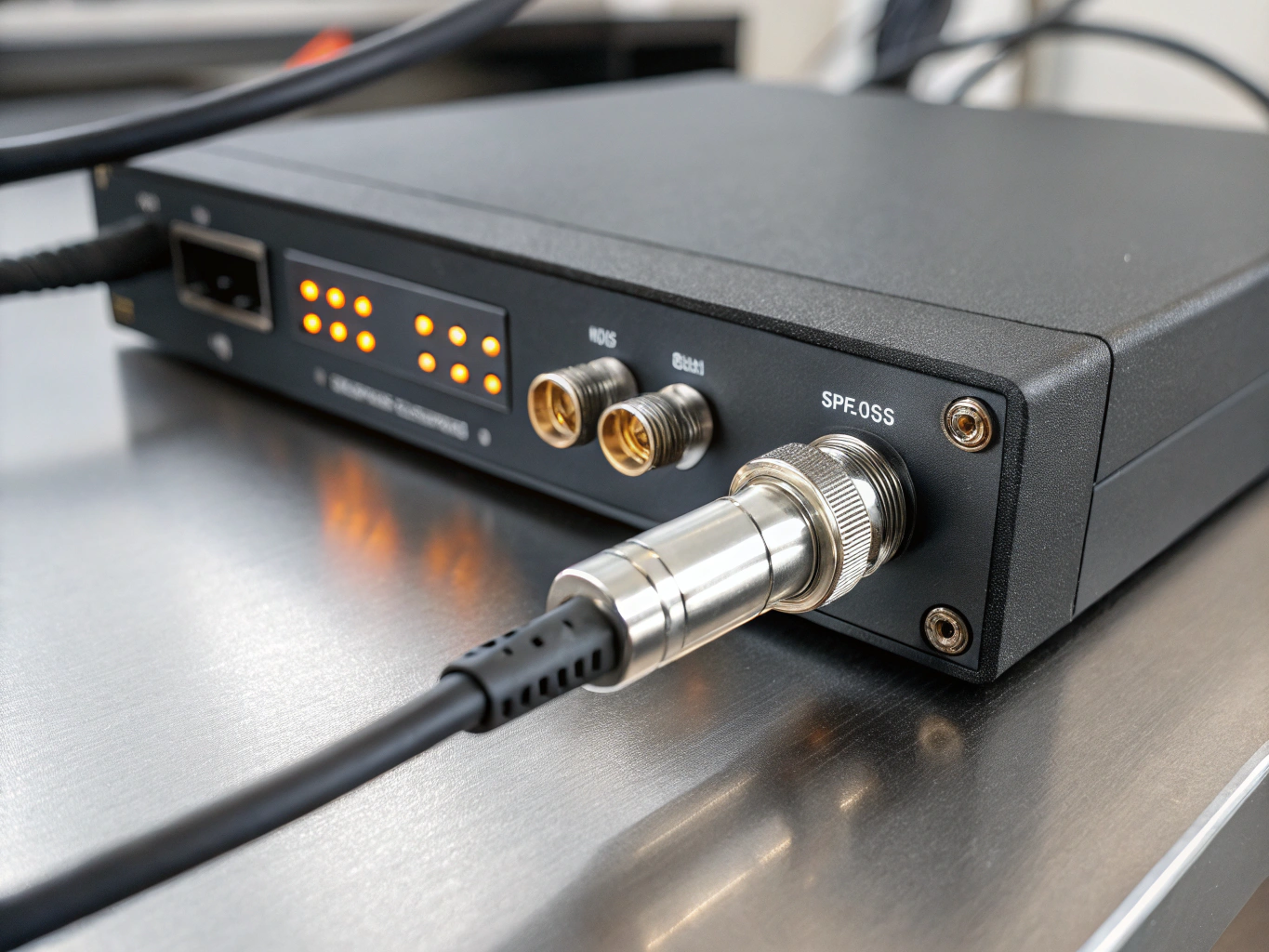

This type includes patch cords designed for demanding environments or specialized applications. Armored patch cords have stainless steel or kevlar armor for rodent protection and crush resistance. Waterproof patch cords feature ruggedized connectors and jackets for outdoor or industrial use. MPO/MTP patch cords are high-density multi-fiber connectors used in data centers for 40G/100G/400G applications. Key options: • Core count, such as 2, 4, 8, 12, 16, or 24 fibers for MPO connectors, or 2 cores for armored/waterproof. • Connector type, such as MPO, MTP, LC, SC, or ruggedized outdoor connectors, with UPC or APC polishing. • Fiber mode, such as single mode or multimode (OM3, OM4, OM5 for MPO). • Jacket type, such as steel armor, TPU (Thermoplastic Polyurethane), or PVC with extra reinforcement. • Waterproof rating, such as IP67 for outdoor use. • Cable diameter, typically 2.0mm to 7.0mm. • Color, blue for single mode MPO, aqua for multimode MPO, or black for armored / waterproof. • Length, customizable from 1m to 100m or longer.
Note on Options:
Available in single-mode and multimode fiber for FTTH, telecommunications, data-center, CATV, and enterprise-network applications. Specify fiber type and grade, connector type and polish, simplex or duplex construction, cable diameter, jacket material, length, and required performance specifications.
